A new GNSS reference station of the CyCLOPS Permanent Segment (PS) with the code name GREC has been successfully installed. GREC is located in Cavo Greco area in Ammochostos District. The details of the new site follow:
| Site: | CAVO GRECO |
|---|---|
| 4-Char Code: | GREC |
| Monumentation: | Shallow-drilled braced Quadpod (according to UNAVCO specs) |
| GNSS Receiver: | Trimble® Alloy (GPS+GLN+GAL+BDS+IRNSS+QZSS+SBAS) |
| GNSS Antenna: | Trimble® Ti-v2 Geodetic Choke Ring with SCIGN Radome |
| Weather Station: | Vaisala PTU 307 with solar radiation shield |
| Tiltmeter: | Jewell D-711-A-S |
| Geology: | Bedrock |

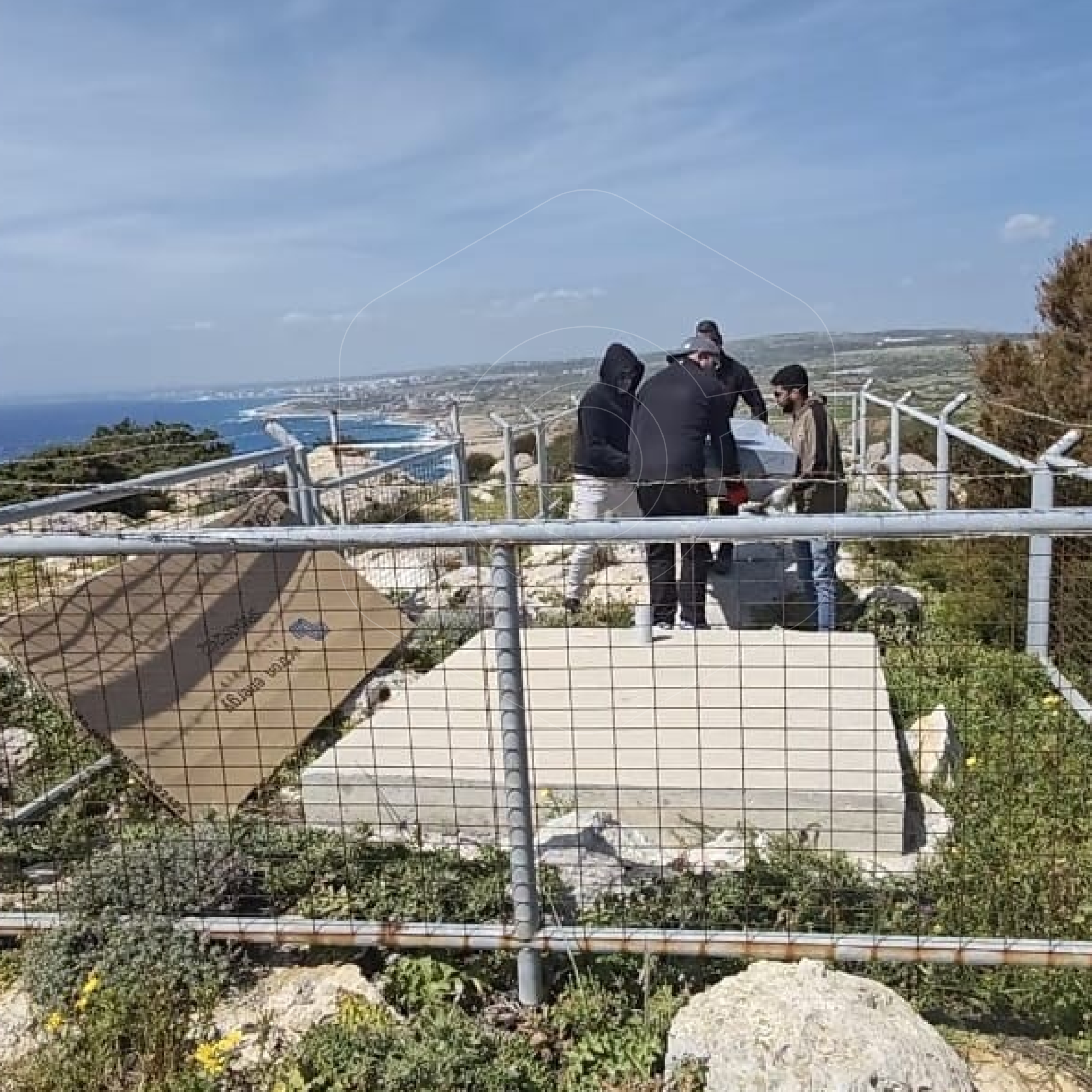

Photos from the Installation
